Expandable Multicouplers

Available from Sinclair Technologies

Our line of expandable multicouplers includes UHF, Tetra, Low band, Aviation and VHP expandable multicouplers.

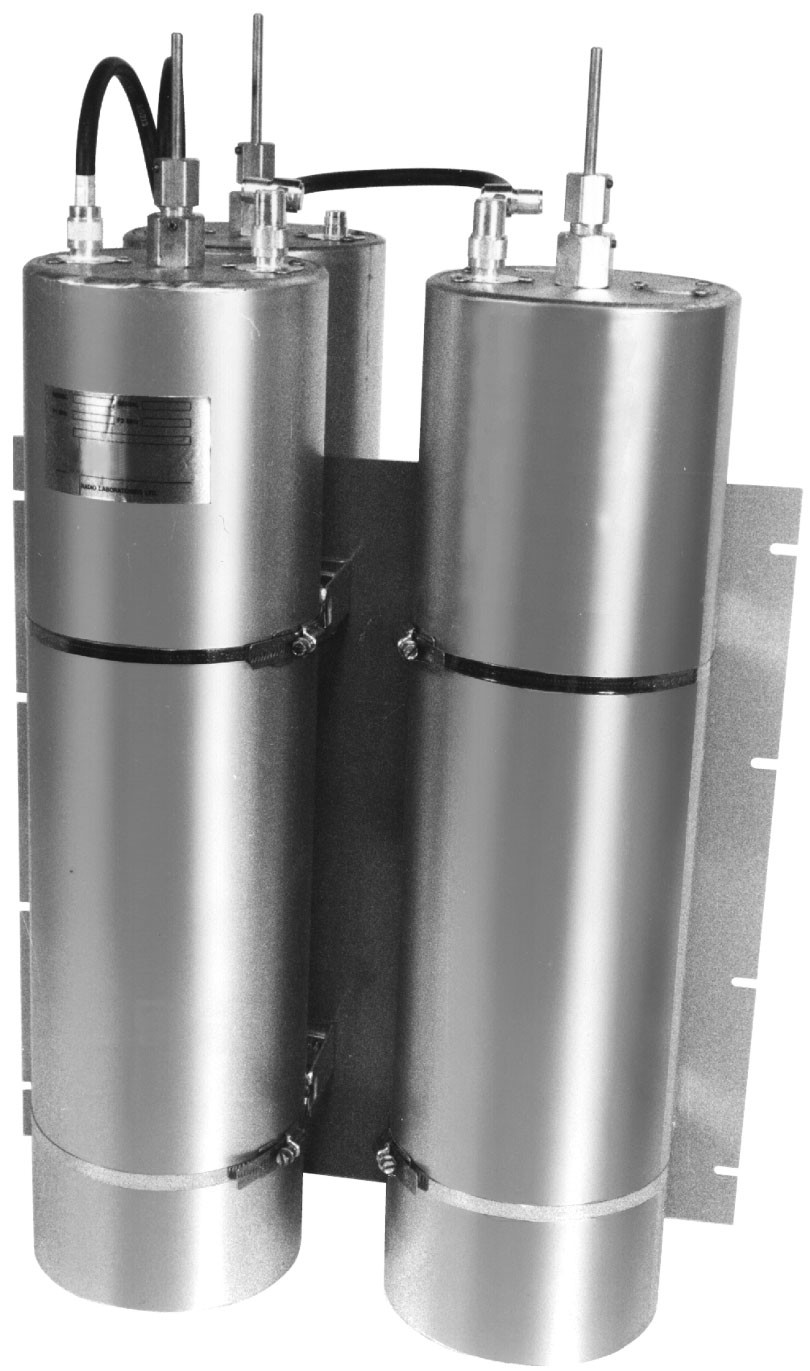

Our C27027-2-1 (shown) is a C Series, pass-reject, 7" cavities, two bandpass, one reject, 132-136 MHz.
Electrical Specifications:
Frequency Range MHz 132 to 136
Input VSWR (max) 1.5:1
Average Power Input (max) W 150-400
Input Connectors N-Female
Output Connectors N-Female
Thru Line Average Power (max) W 500
Frequency separation (min) MHz 0.5
Insertion loss (min) dB 1.2
Insertion loss (max) Tx to Ant dB 3.2

Mechanical Specifications:
Depth in 14.9
Length/ Height in 35
Width in 19
Net Weight lbs 41
Actual Shipping weight lbs 50
Shipping dimensions in 20x18x38

Environmental Specifications:
Temperature range °F -40 to +140
