Low profile, universal transport antenna

Available from Sinclair Technologies
Product Menu
View Company Profile View all Products

Product Details

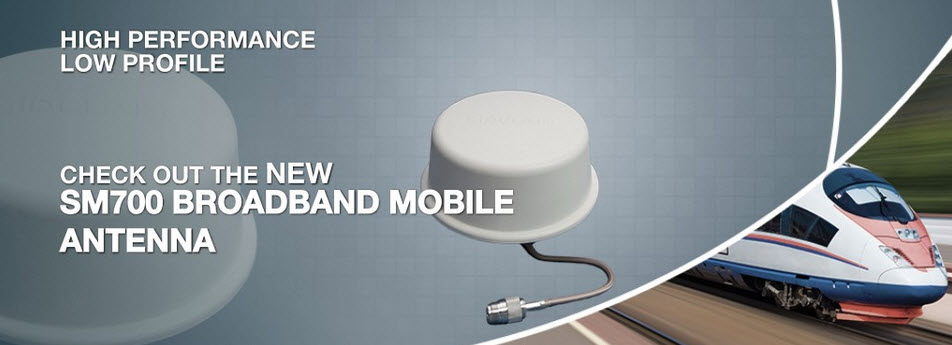

The SM700 low profile universal transport antenna covers the full frequency band from 694 to 6000 MHz and operates without additional ground plate. It is a maximum 2.6 inches in height with white radome and one 3/4" hole mount for easy installation.

Electrical Specifications:
Frequency Range 1 (F1) MHz 694 to 6000
Gain F1 (typ) dBd unity
Input VSWR 1 (nominal) 2:1
Pattern (F1) Omni
Bandwidth MHz 5306
Connector N-Male, N-Female, BNC-Male, BNC-Female, TNC-Male or TNC-Female
Polarization vertical
Impedance Ω 50
Average Power Input (max) W 200

Mechanical Specifications:
Height in 2.6
Overall Diameter in 6.3
Radome material UV stabilized ABS
Weight lbs 1.35
Actual Shipping weight lbs 1.8
Shipping dimensions in 11x8x5
Radome Colour White

Environmental Specifications:
Horizontal Wind Resistance 1.53lb
Temperature range °F -40 to +140
Wind Loading Area (1/2" ice) ft² 0.06
