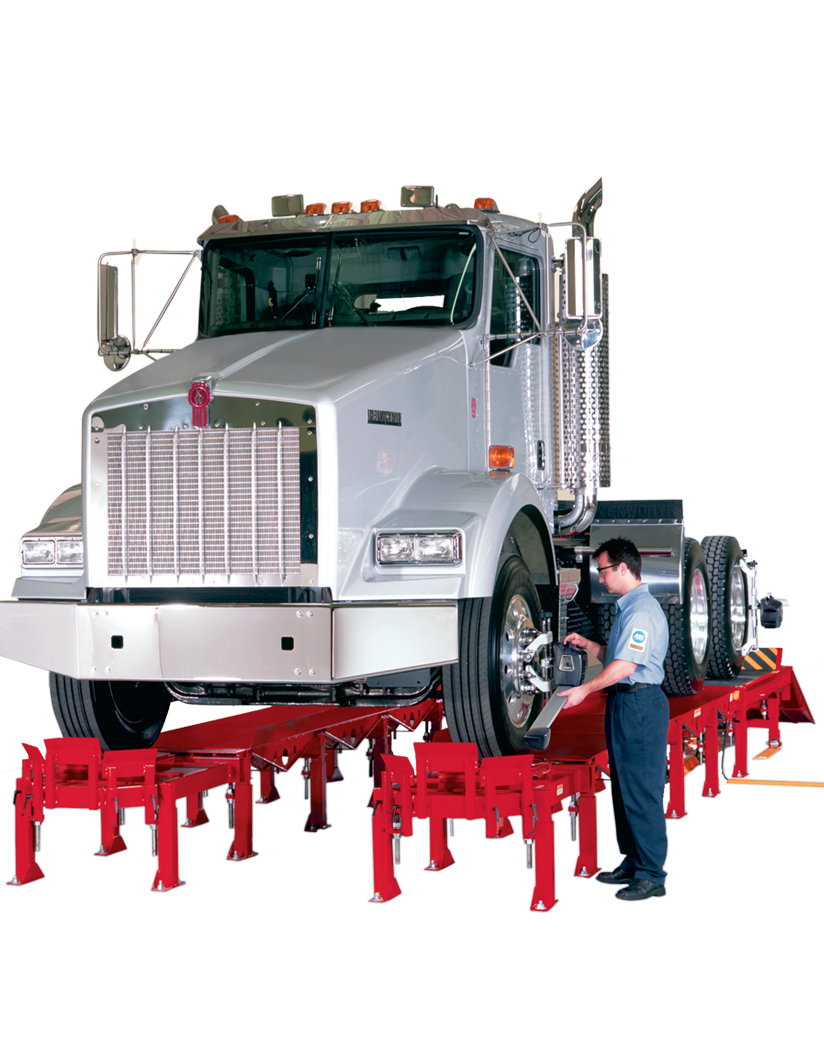

HD Lift Racks
Available from Hunter Engineering Co.
Pop-up ramps add wheelbase capacity while making efficient use of bay space. Automatic wheel stops engage when ramps are raised to up position. Ramp legs safely lock in over-center position at maximum rise.
Optional Jack Tray
Optional Jack Tray with wheels and guides simplifies alignment and other service operations that require jacking. An option for bottle jacks is also available.
Lift controls require two hands for safer operation.
Recessed pockets are ready for optional turnplates.
Super-wide 33-inch runways make drive-on/drive-off easy and safe.
An unlimited number of runway sections can be added to increase wheelbase capacity.
8° approach angle for drive-on clearance.
Non-skid surface helps prevent wheel-spin.
Inside rub-rails help prevent smaller vehicles from driving off the sides of the runways.
20,000 lbs. Capacity
Super-strong truss-design runways provide 20,000 lbs. per axle capacity.
Legs bolt directly to the bay floor for maximum strength. Each leg has a level adjustment for maximum level accuracy.
Front Wheel Stops
Adjustable front wheel stops provide clearance during vehicle service operations.
