3D Scanning and Reverse Engineering

Product Details

INSPECTION REPORT & FIXTURES

Based on the 2D drawing tolerances and 3D CAD data, STYL&TECH produces comprehensive spreadsheets or color-map reports. STYL&TECH can inspect parts, assemblies, jigs, products and manufacturing plants. Several companies from numerous industries, such as transportation, aerospace, medical, defense and electronic devices, use our 3D measurement capabilities and facilities.

STYL&TECH offers tooling fabrication services. Based on the 3D CAD data, we design and produce fixtures to constrain the part as required by the tolerances:
CNC fixtures for permanent measurement;
One time positioning fixtures.

REVERSE ENGINEERING

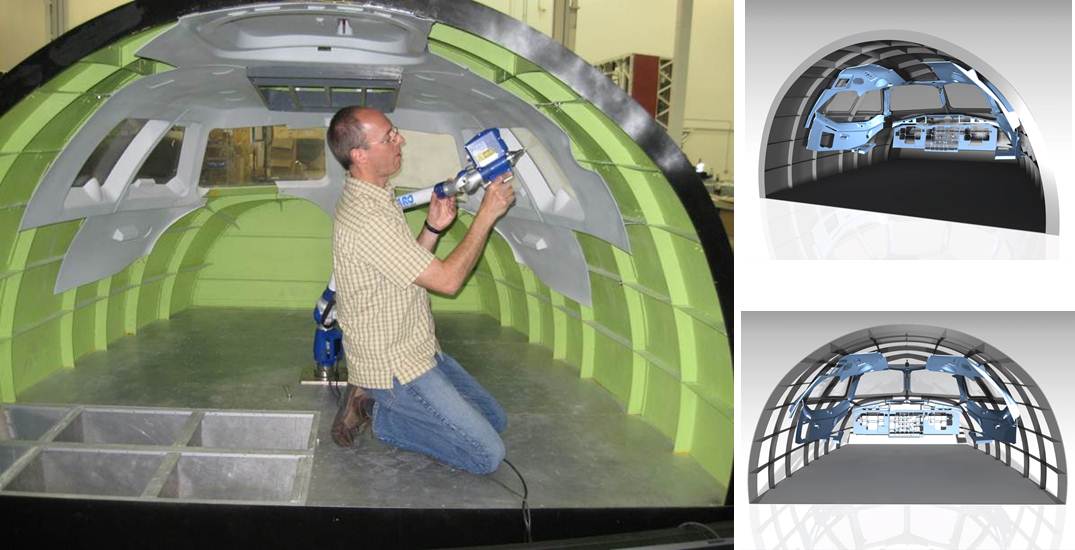

STYL&TECH uses reverse engineering in the process of taking clay models or finished products and reconstructing design data in compatible customer CAD format to fabricate new parts or tools. From our 3D scan data we build 3D surfaces in solid model and make a comparison report based on the differences between the 3D scan data and the new CAD model. Our clients recognize us as powerful Class A surface providers.
