35T Rail Bound Crane

Product Details

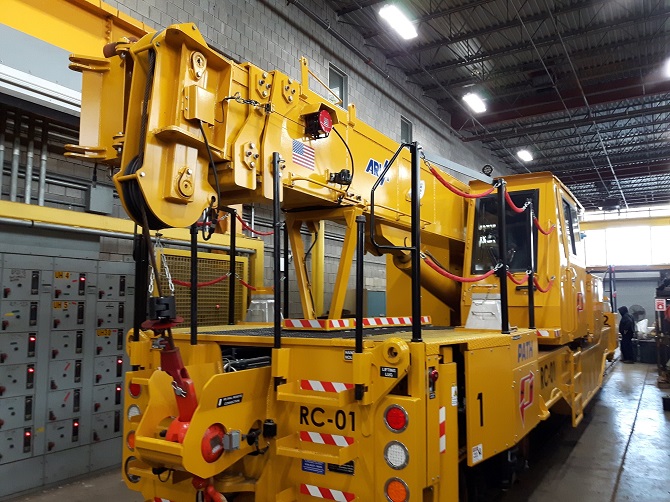

ARVA 35 Ton – Rail Crane
•Designed to Lift & Place 40 ft. Track Panels inside Transit Tunnels
•Capable of lifting 15,000lb. Track Panel at zero-degree Boom Angle – at 20ft. in front of coupler
•Capable of travel while carrying the weight without the use of outriggers
•Boom Angle Range: -6 deg. to 65 deg. / Equal Capacity & Reach over Both Ends
•Folding 5 ft. Jib End with 18,000 lb.

Capacity Specifications:
•Tandem Cab provides Clear Visibility in Forward & Reverse Directions
•Boom length able to reach 40ft. (with Jib) out front of the Crane coupler at full extension on a horizontal plane of 8 degrees. (33-1/2 ft. without Jib)
•70,600 lbs. Lifting capacity in both track direction, 64,000 lbs. in full slew
• Cummins TIER 4QSL9-P-T4F – 380 hp
• Towing Capacity: 80,000 lbs.
• Hydrostatic – 4 axle Drive – with Slip Control
• Travel Speed 30 mph
