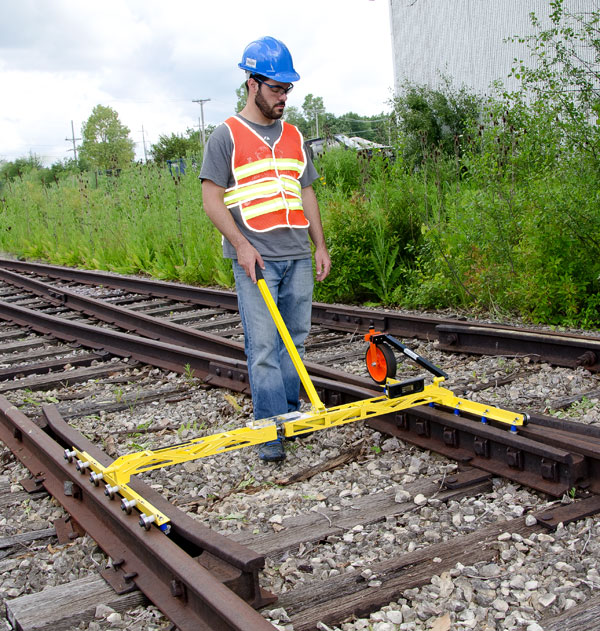

Roadmaster Rolling Gauge Reader
Available from Aldon Company, Inc.
Product Details
Item #: 4022-14
◾ Continuous gauging with 2" clearance above rail.
◾ Rolls through switches and rail crossings without stopping.
◾ 2 sets of six roller bearings on each side provide gauging control
even when passing over the gap between the rail and the V of the
frog.
◾ Horizontal rollers contact rail head 5/8" below top for accurate
gauging.
◾ Rollers are 40mm diameter and easily pass through 1-7/8" standard
flangeways.
◾ Large gauge display.
Does not include:
◾ High-Clearance Distance Counter (see Item #: 4022-20) or
◾ AL-117 Digital Level (see Item #: 4022-12).
Weight 34 lbs.
*SHIPS LTL TRUCK*
