Rail Tugger for Crane Rail

Available from Aldon Company, Inc.

Product Details

Item #: 4016-24

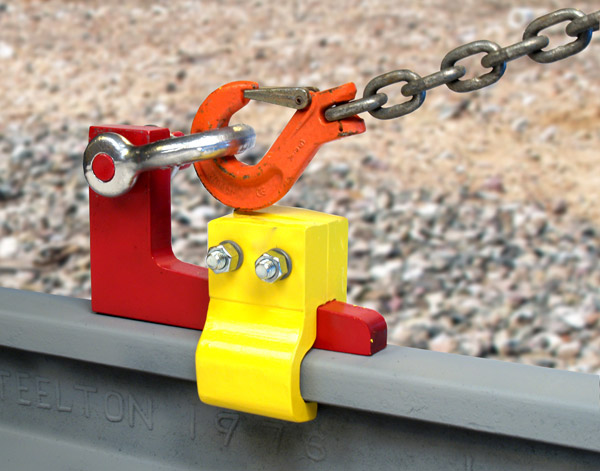

◾ Custom-sized for a specific crane rail size and section.
◾ Steel wedge dogs clamp to rail head for positive anchoring.
◾ Pull horizontally to drag or position 39-foot lengths of rail.
◾ Pulling direction must always be in the direction shown above,
so wedge drives itself into slot between wedge dogs.
◾ Do not attempt to lift or hoist rail using Tugger.
◾ Tugger can also be used as a rail anchor for pulling an inoperative
overhead crane by means of a come-along puller.

Maximum horizontal pulling limit: 4000 lbs. Tugger can also be made for a specific size and section of railroad T-rail. To order: specify rail size and section.

Weight approx. 17 lbs. (depending on rail size)
